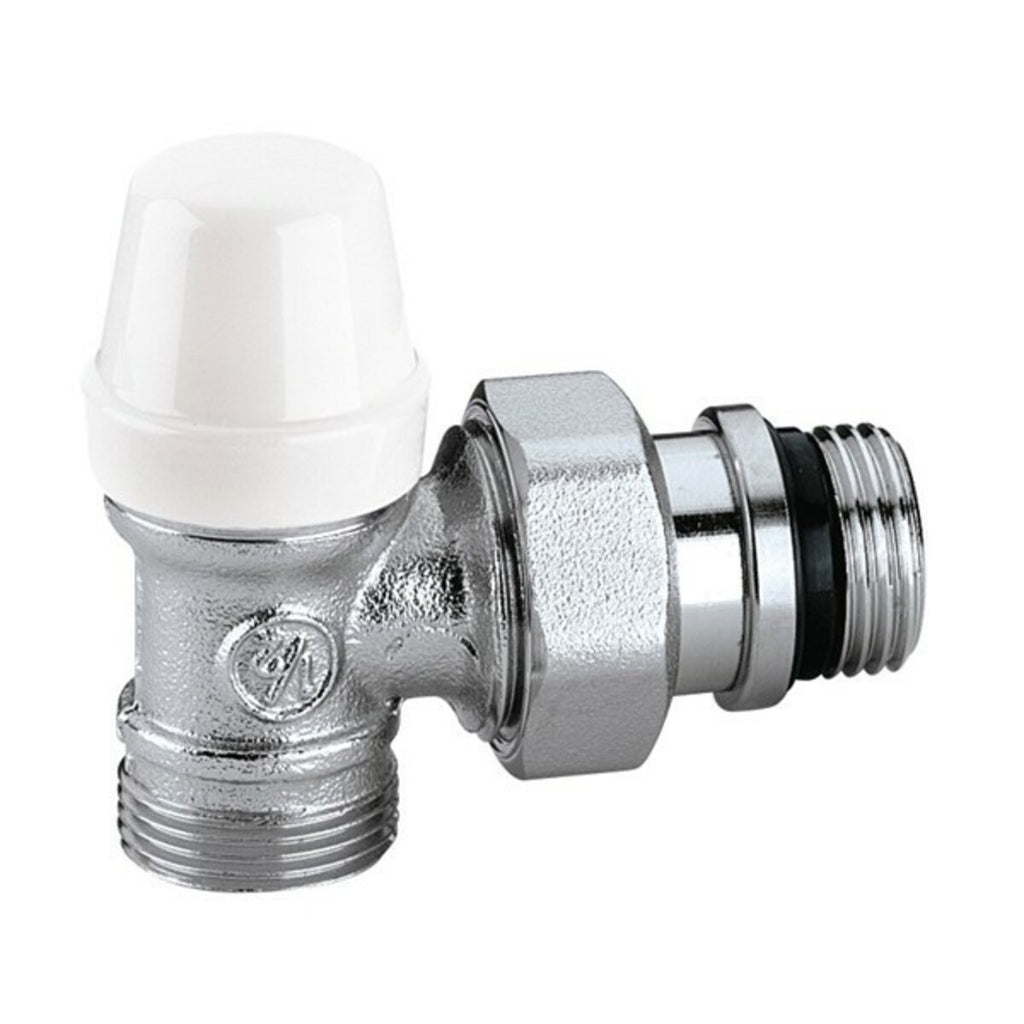

CALEFFI 342 Series angle lockshield with 3/8 connections for radiators
Code 342302
The CALEFFI 342 Series angle lockshield is mounted on heating radiators and has the function of managing the outflow of the system carrier liquid and achieving perfect balance of the radiator in the heating system.
It has a pleasant and discreet design that integrates well with all radiator models and in any environment.
GUARANTEED SAVINGS AND HIGH COMFORT
The CALEFFI Series 342 angle lockshield expresses the particular care that Caleffi dedicates to both the design and construction of the items.
The square shape allows it to be installed in all cases where the pipes are positioned on the same fixing wall as the radiator, the dimensions of the body allow it to be installed on all radiator models.
The lockshield body is made of EN 12165 CW617N brass in a chrome plated colour, the internal components are made of stainless steel for particular efficiency and durability over time, the hydraulic seals already incorporated are made of EPDM, the coupling union to the radiator connection thread is complete of a rubber ring that allows it to be fixed without using additional gaskets or hydraulic hemp, the cap is in white RAL 9010 ABS.
It can be used with ambient temperatures with a maximum limit of 50°C, carrier fluid temperature range from 5 to 100°C and max operating pressure: 10 bar.
Installation is also quick because it does not require additional elements such as gaskets or hydraulic hemp; the dimensions are very small.
DIMENSIONS
Length including thread: mm. 60 – Width: mm. 47.5 - Fittings: 3/8” radiator side x 23 p.1.5 piping
WARRANTY
The guarantee is the Official CALEFFI one and has a duration of 2 years.
