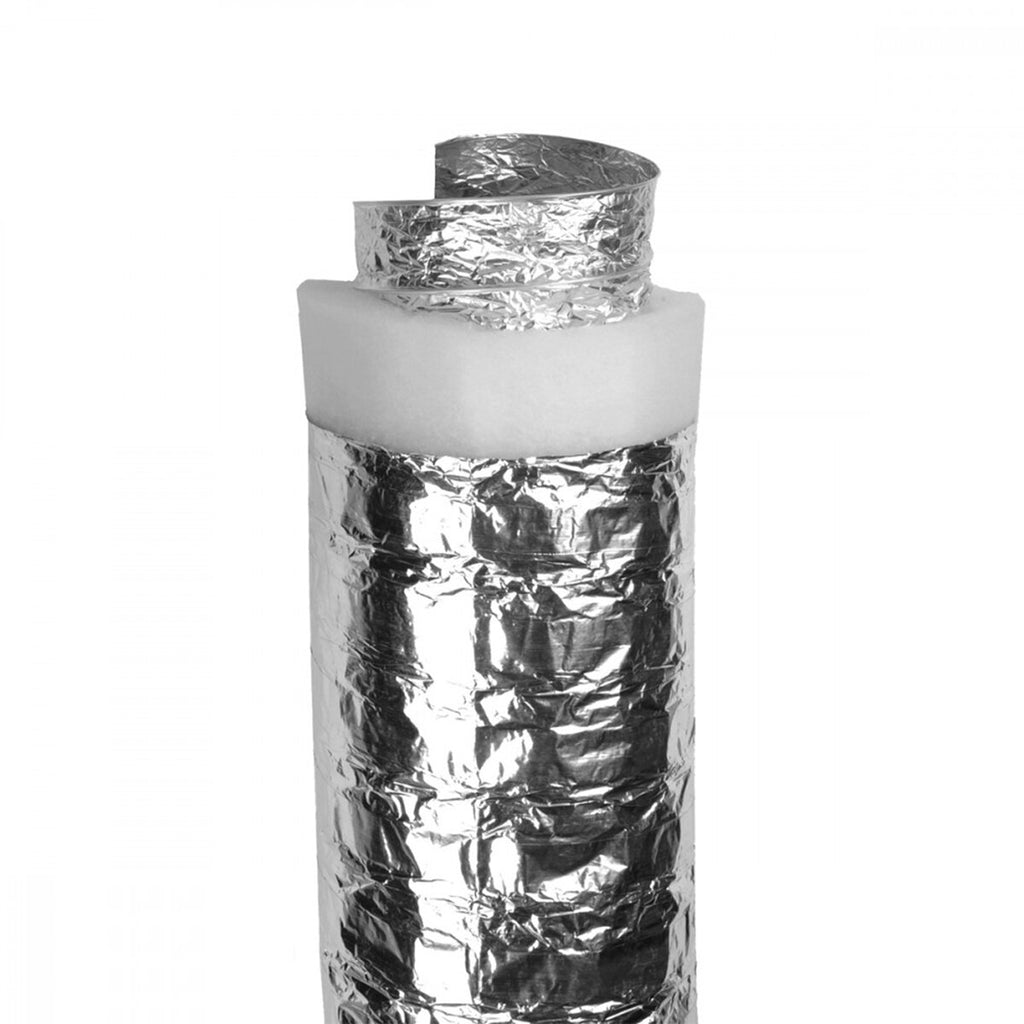

Insulated flexible hose Ø 160 mm
The insulated flexible pipe is one of the necessary accessories within a controlled mechanical ventilation or air conditioning system.
It consists of: a laminated aluminum wall with a reinforcement consisting of a spring steel wire spiral embedded between two layers; a 25 mm thick, 250/300 g/m2 polyester fiber insulating mat; and a “vapor barrier” external covering in reinforced laminated aluminum.
With a diameter of 160 mm , this Brofer TEV flexible pipe makes it possible to apply it in all contexts , from new constructions to renovations conditioned by architectural impediments for new systems.
Durability, stability and safety characterise this accessory which stands out not only for its insulating and optimal air conduction qualities, but also for its certified positive fire resistance (ITALIAN CLASS: Class 1 (DM 26/06/84) Compliant with: UNI CEI11170-3 Ed.2005 + FA 2007).
Technical features
- Color: gray-aluminum
- Standard length 10 meters
- Curvature radius from 0.8 to 1 times the diameter
- Operating temperatures -30/140 °C
- Maximum working pressure 2500 pa
- Maximum air speed 30 m/s
Dimensions
- Diameter: 160 mm
- Standard length: 10 m
NB: Photo is purely indicative. The product supplied may vary in brand and aesthetic details based on stock availability, while maintaining equivalent technical characteristics.
Warranty
The warranty lasts 2 years .
