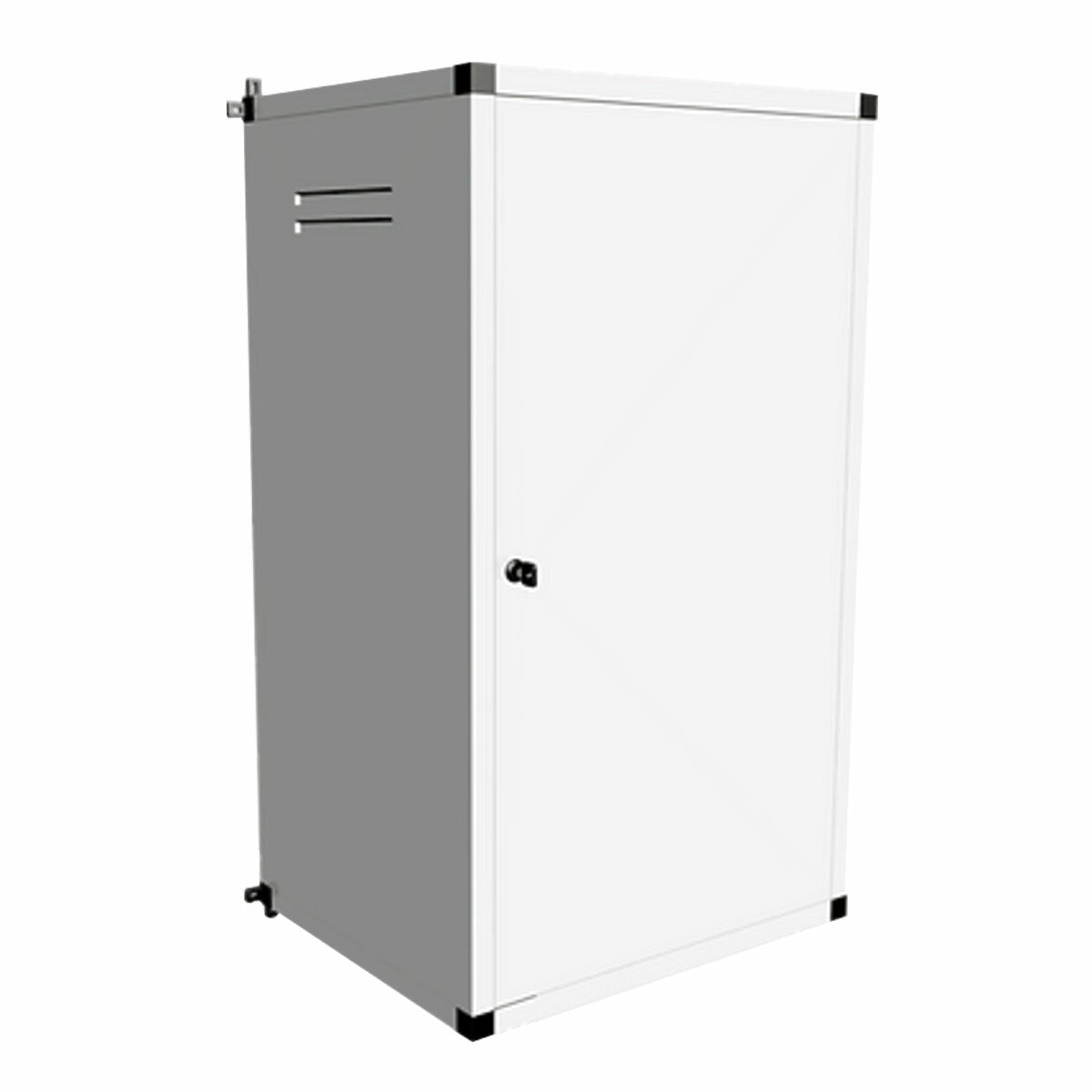

The BOILER COVER or WATER HEATER / WARMER cover is essential to protect these items from atmospheric agents when installed outdoors; It resists rain, snow, wind and sun perfectly.
The box proposed here is available in three different sizes so you can always choose the one best suited to the size of the boiler or heater to be protected.
Made of galvanized steel and painted white (RAL 9016), the box is equipped with a door complete with lock with steel closure and opening knob; during assembly it can be assembled in such a way that the door opens to the right or to the left. The upper part consists of a pre-perforated panel for the passage of any smoke exhaust pipe; the movable panel is equipped with magnetic inserts for centering the flue. The lower panel, on the other hand, has an opening of suitable dimensions to allow the passage of air for the open chamber boilers and heaters and the passage of the pipes connecting to the water system and gas supply.
The assembly of the BOILER COVER / WATER HEATER COVER / WARMER COVER is simple and intuitive; the kit is assembled using the corner elements and clips supplied. The particular system with boxed profiles hides the cuts in the sheet metal and guarantees considerable accident prevention protection.
TECHNICAL CHARACTERISTICS
- 7 mm square male cylinder lock
- 7 mm square female key
- Mounting system with shockproof plastic elements
- Pre-drilled upper panel with magnetic fixing
- Self-locking rear fixing corner elements equipped with wall anchoring eyelets.
DIMENSIONS
Width 60 cm - Height 108 cm - Depth 45 cm.
Upon request, the box can be equipped with fiberglass insulation (optional, to be purchased separately) as per the attached technical data sheet.
