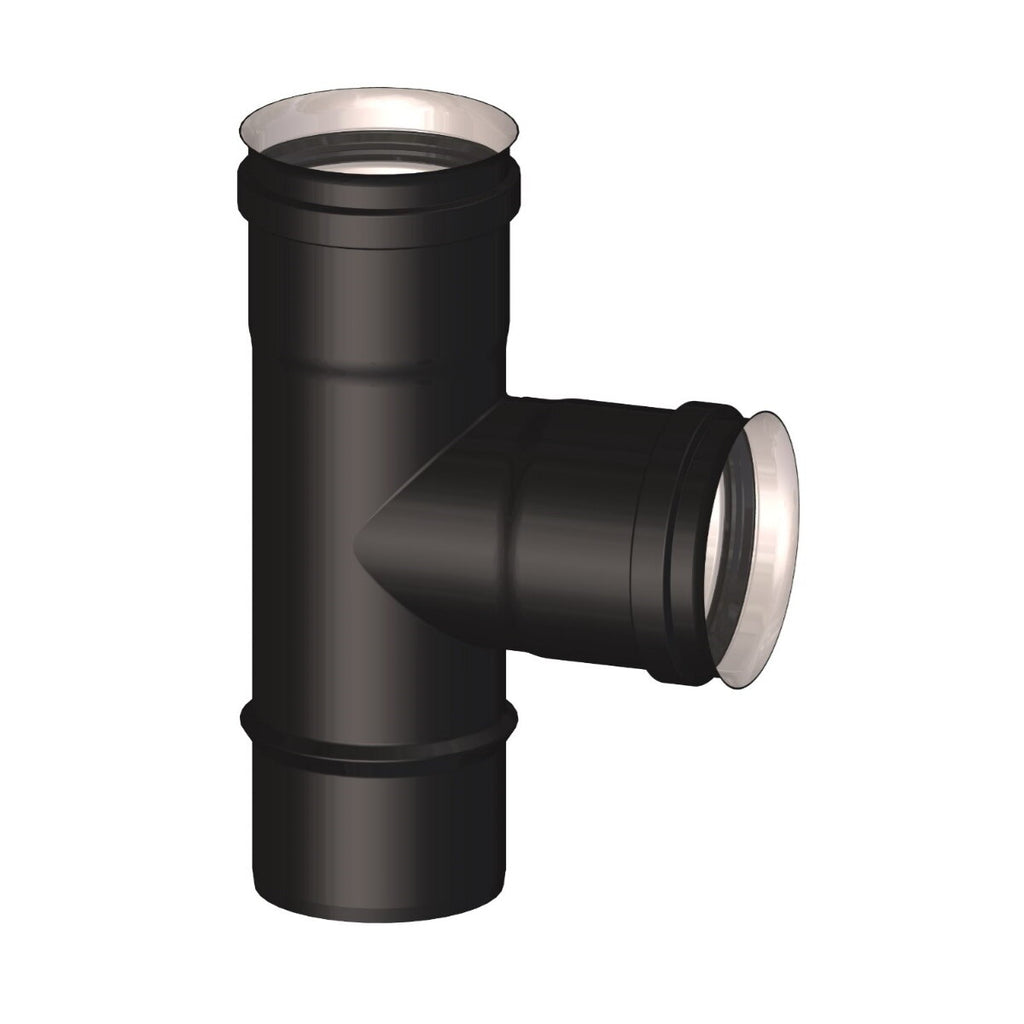

90° CONNECTOR AT FEMALE/FEMALE/MALE - Ø 80 mm - FOR SMOKE EXHAUST PELLET STOVE AND PELLET BOILER - IN STEEL - MATT BLACK COLOR
This T-fitting is part of the STABILE NPS Flue System family.
The components of the STABILE NPS Flue Gas System are designed to be used with pellet stoves and pellet boilers, which expel fumes at high temperatures of up to 300°C if installed without a gasket, or up to 200°C when installed with a gasket.
The elements of the STABILE NPS series are made of highly resistant AISI 316L stainless steel , 0.4 mm thick; the black powder coating is carried out according to the highest quality standards to last a long time.
They enjoy the best classes of temperature, pressure, resistance to condensation, resistance to corrosion, resistance to soot fire.
They are complete with gaskets made of a black silicone elastomer, already mounted; the gaskets are profiled with three lips and are EN 14241-1 certified.
The products of the STABILE NPS series have obtained the CE Certificate for the control of production systems in the factory (n° 0407-CPR-1478) pursuant to EU Regulation 305/2011; they comply with the EN 1856-2:2009 | 0407 | Istituto Giordano SpA regulation specifically for metal chimneys (internal ducts and metal smoke channels); they have obtained the CE marking Declaration of Performance no. 54 - DoP- 01.07.2013.
The STABILE NPS system is installed as a smoke duct and complies with the UNI 10683 and UNI 11278 standards.
DIMENSIONS
Diameter: Ø 80 mm.
WARRANTY
The guarantee is the official Stabile one and lasts 2 years.
