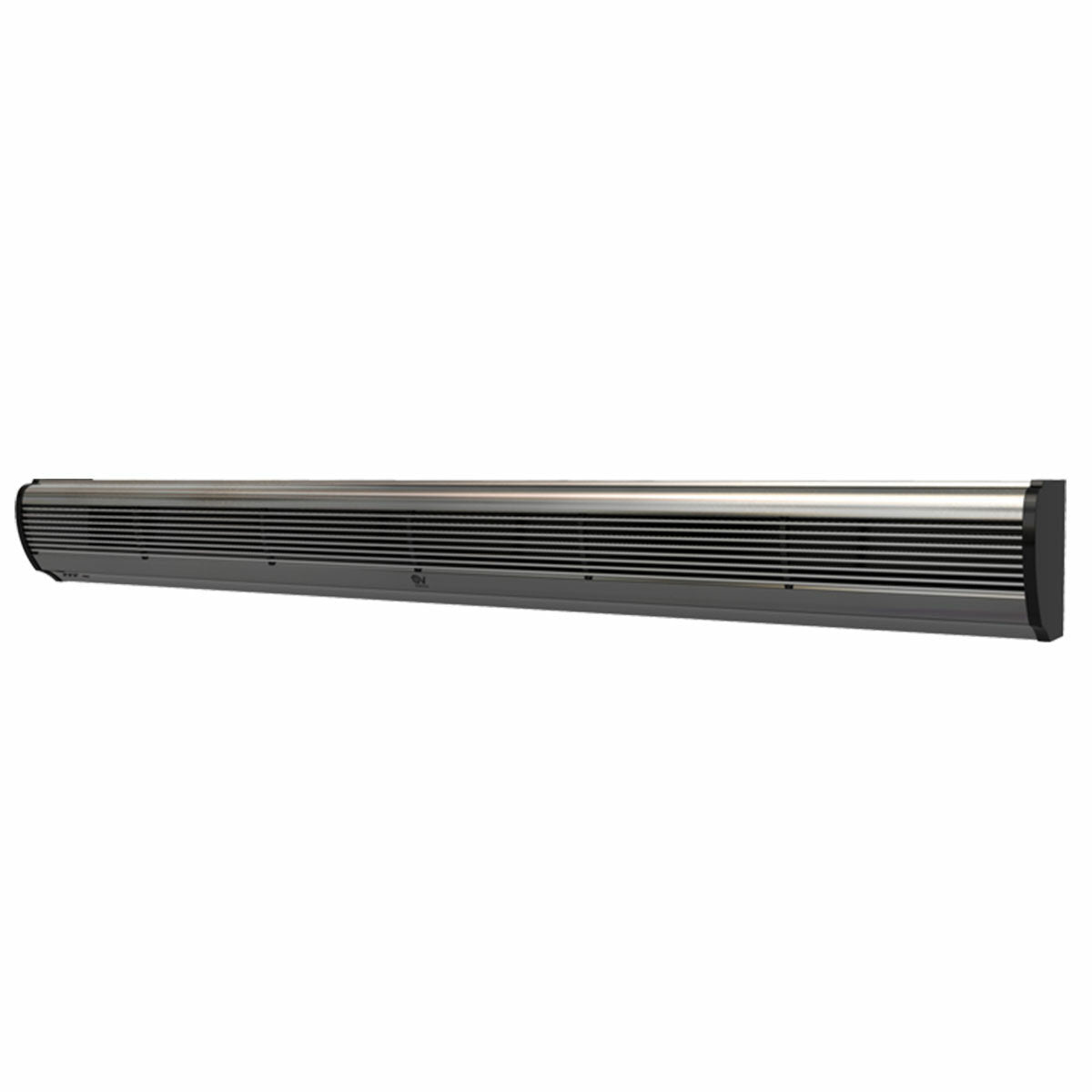

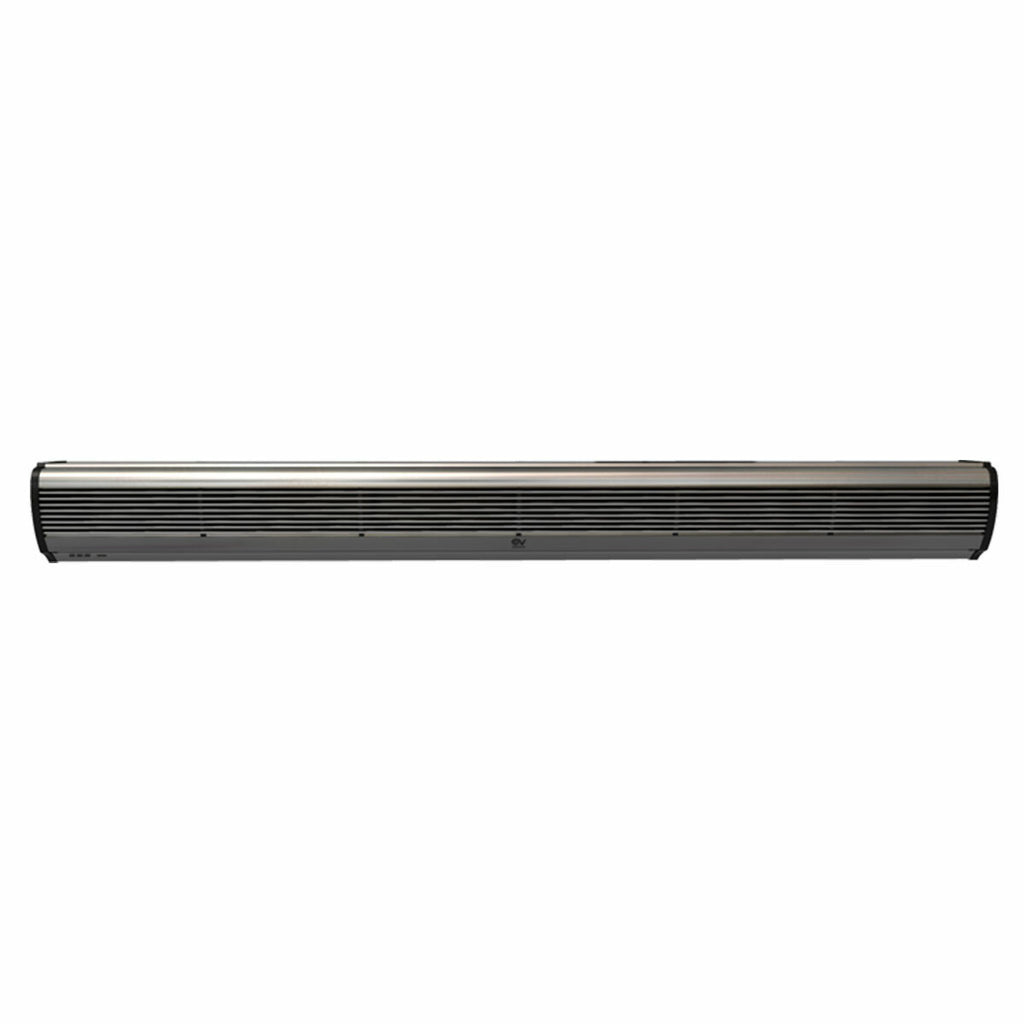

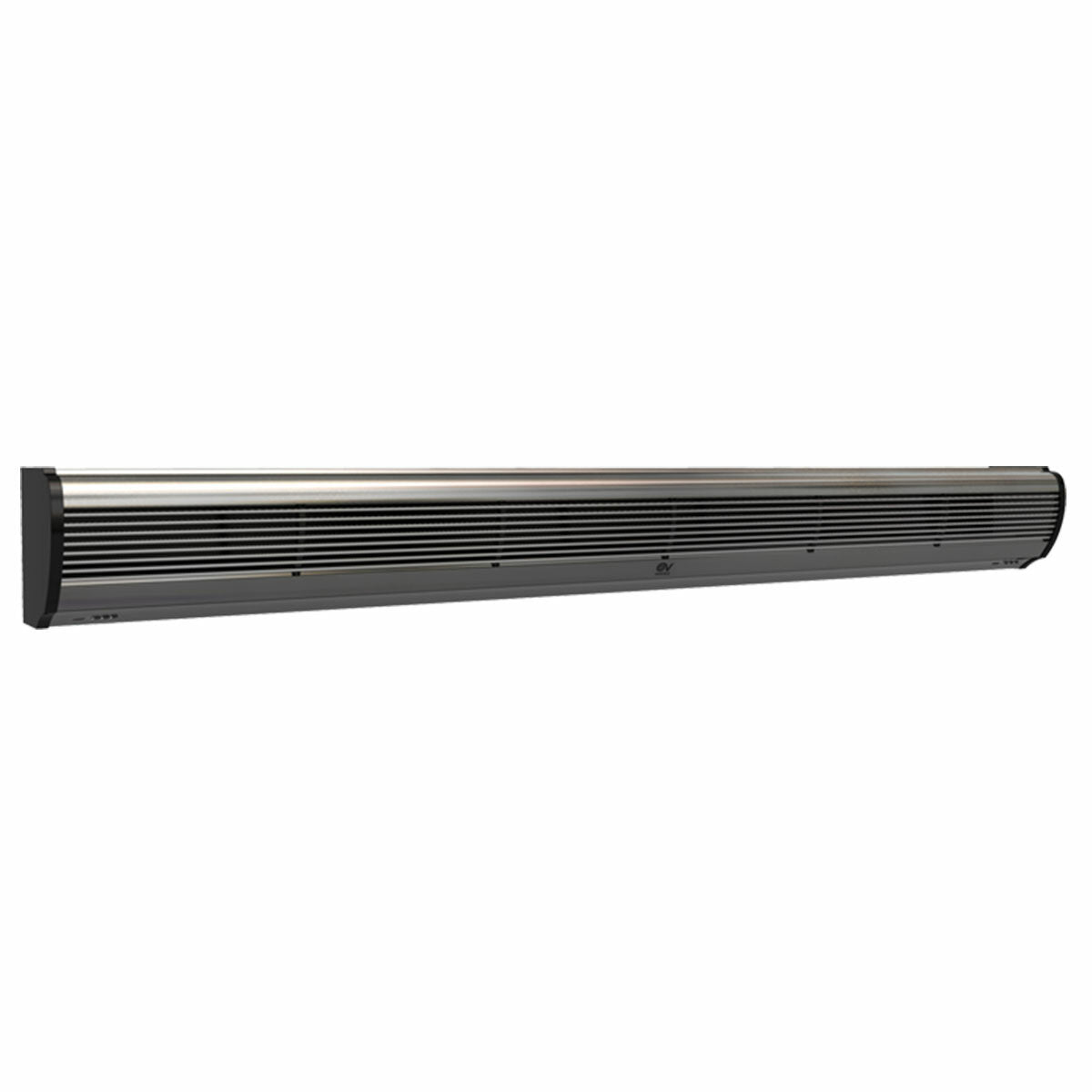

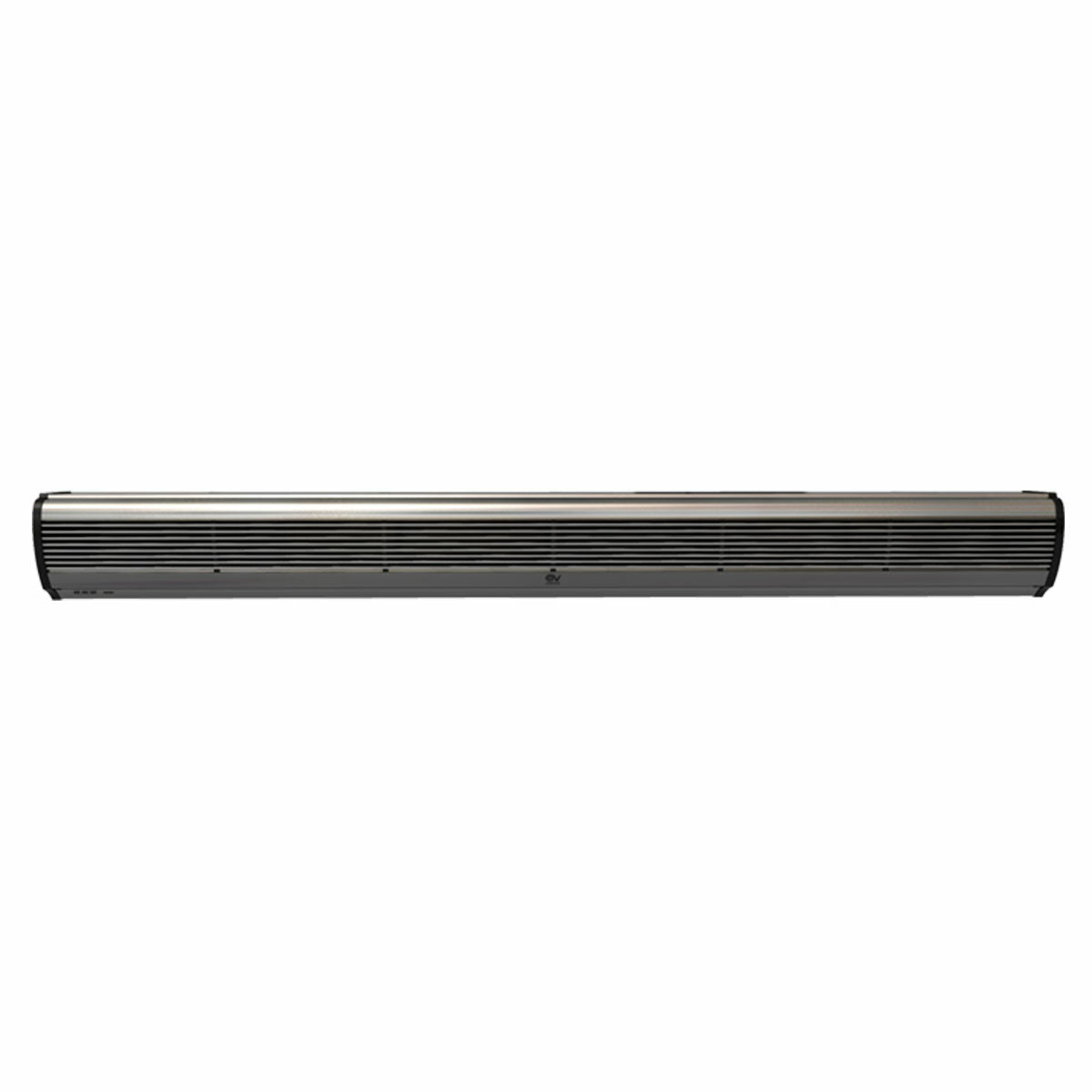

AIR CURTAIN VORTICE AIR DOOR AD2000 NEUTRAL TWO-SPEED VERSION, WIDTH 200 CM
Vortice brand ventilation systems represent products on the market that fully satisfy the customer's needs, as they are developed and oriented towards improving performance and reducing energy consumption, in line with the utmost respect for the environment. The Vortice company stands out for its policy of constant and continuous quality improvement, pursuing the strategic line of offering high-end products and services to the market.

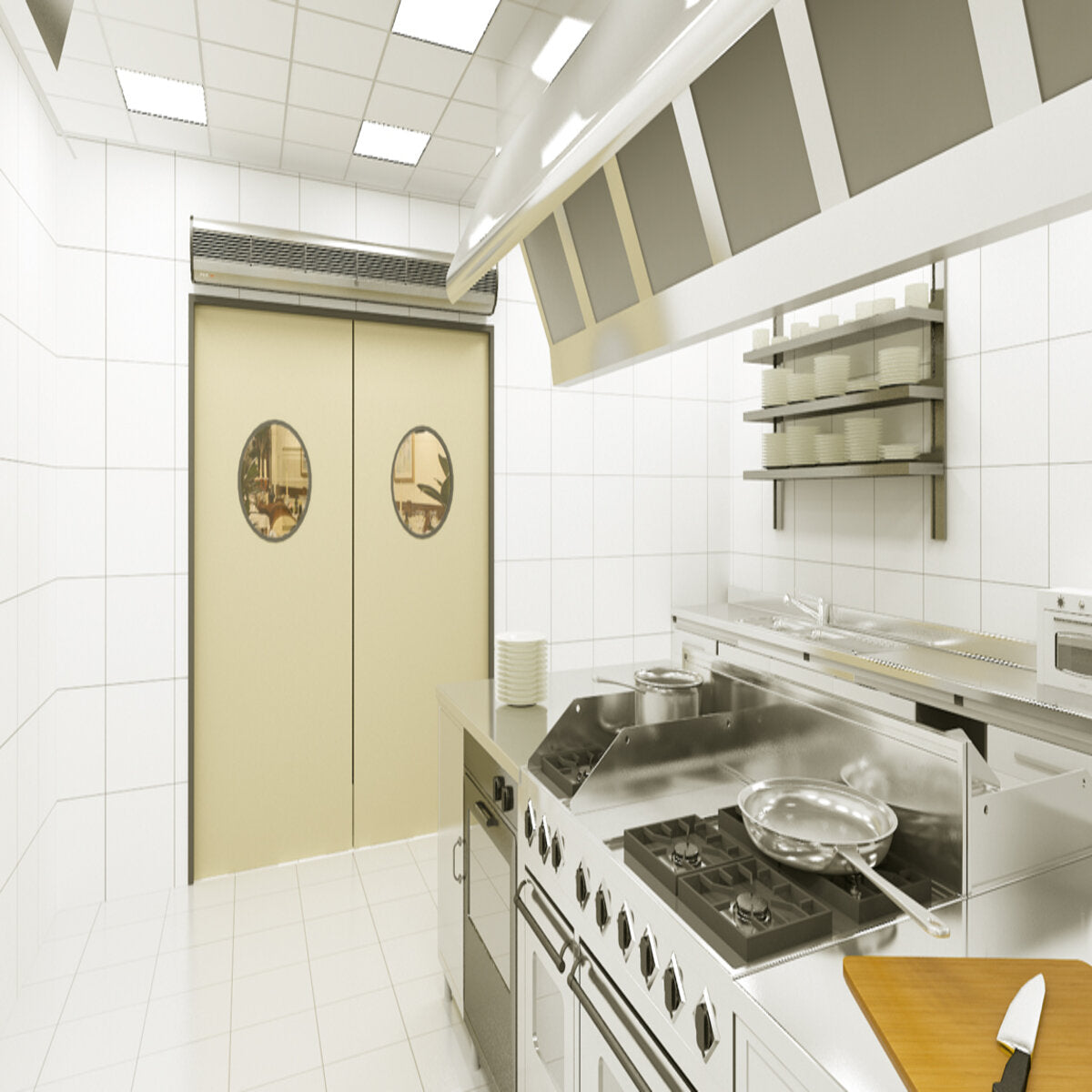

The vortex Air Door AD2000 air barrier is characterized by an attractive and modern design thanks to the satin aluminum and the silver panel that compose it. Its 9 horizontal elements in polished aluminium, the rear body in black sheet metal and the black side panels in ABS thermoplastic resin give it a bold appearance suitable for the most contemporary commercial furnishings.
Thanks to the use of the Vortice air barrier in a commercial space, it is possible to obtain various benefits. First of all, the mechanism allows you to retain hot air inside and reject the cold outside, avoiding any thermal shock between one room and another. Furthermore, the reduction in heat or cool dispersion is up to 90% compared to consumption without the use of Vortice air barriers. The Air Door AD2000 air curtain proves to be particularly useful for preventing access to fumes. insects and solid particles present in the atmosphere.
CHARACTERISTICS
• Nominal product width: 2000 mm.
• Neutral version (air room temperature) and 2 operating speeds.
• AC twin-shaft motor, thermally protected.
• Minimum flow rate: 2900 m3/h
• Maximum flow rate: 3600 m3/h
• 2 tangential fans, made of black thermoplastic resin (SAN), ultrasonic welded, direct the air through a longitudinal opening located in the lower part of the machine.
• IR remote control, with button for turning the product on/off and for selecting speeds; the same controls are positioned on the front panel of the product (3 buttons).
• Power cable with Schuko plug.
• Possibility of combining with standard “door sensors”.
• Adjustable fins to direct the air jet
ENERGY YIELD DATA
-Max absorbed current (A): 1.52
-Frequency (Hz): 50
-Number of speeds: 2
-Max power absorbed at max speed. (W):350
-Max power absorbed at min speed. (W): 300
-Temp. max continuous operation environment (°C): 30
-Voltage (V): 220-240
-Max flow rate at max speed. (l/s): 1000
-Max flow rate at max speed. (m³/h): 3600
-Max flow rate at min speed. (l/s): 805
-Max flow rate at min speed. (m³/h): 2900
-Sound pressure Lp [dB (A)] 2m - max speed: 61
-Sound pressure Lp [dB (A)] 2m - min speed: 59
-Max RPM: 1450
-RPM min: 1400
-Air speed at max speed. (m/s): 11
-Air speed at min speed. (m/s): 9
DIMENSIONS
Height: mm. 220 – Width: mm. 2000 - Depth: mm. 190
Weight (Kg): 20.5
WARRANTY
The warranty is the official Vortice one and has a duration of 24 months.
