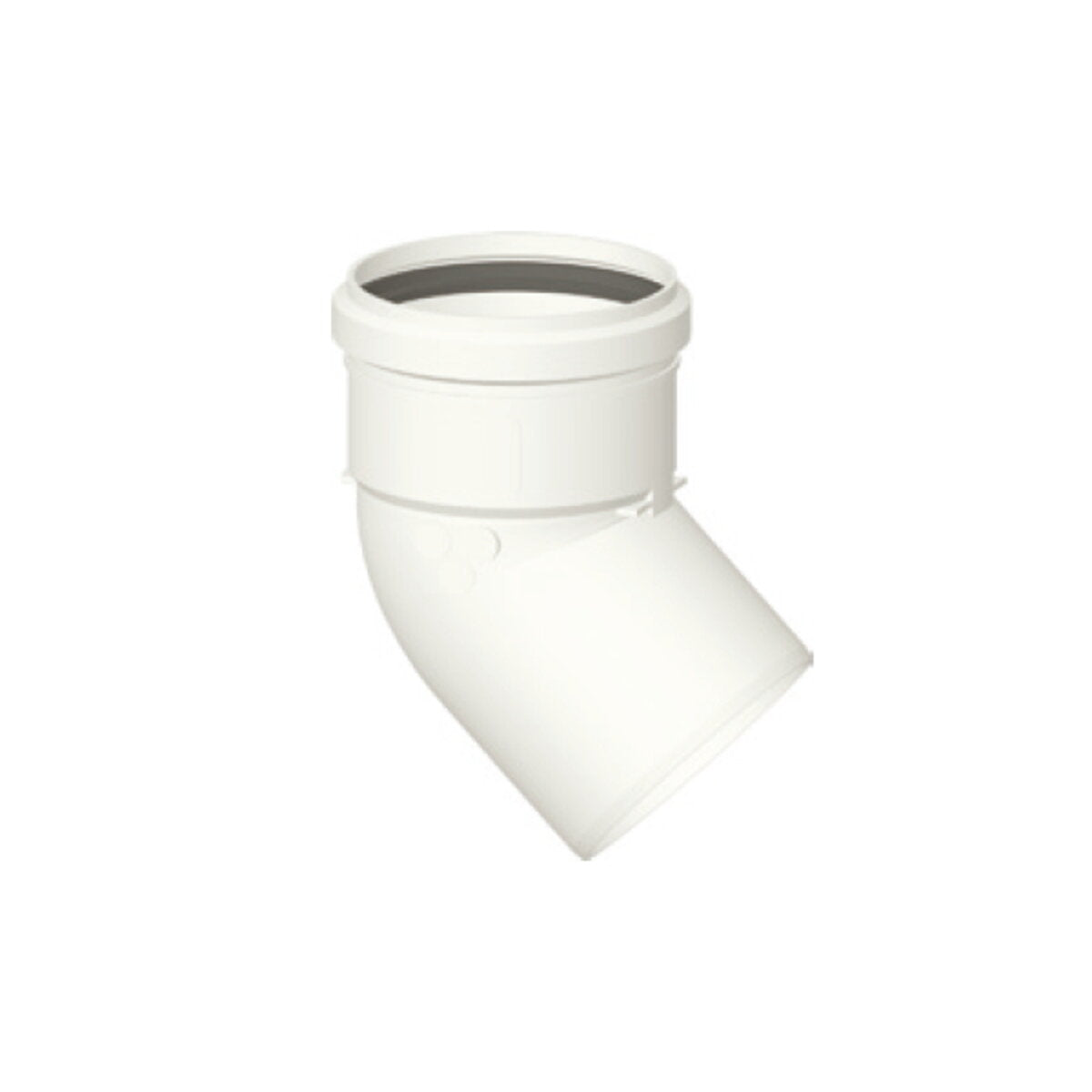

45° BEND FUME DISCHARGE CONDENSING BOILER DIAM. 80MM. MALE-FEMALE IN POLYPROPYLENE - WITH GASKET - WHITE COLOUR
This curve belongs to the family of the STABILE PAB Fume Exhaust System .
The STABILE PAB Fume Exhaust System was created to be used with condensing appliances but can be used with all gaseous or liquid fuel heat generators that produce fumes and combustion products in general with temperatures absolutely no higher than 120°C. The STABILE PAB Fume Exhaust System can also be used for the realization of the exhaust of kitchen hoods and air supply/extraction ducts as long as the temperatures do not exceed 120°C. Complete with EPDM gasket already mounted.
It complies with the UNI 7129:2015 and UNI 11528:2014 standards, therefore it can be used as a duct, exhalation channel, single and multiple ducted duct and as a collective ducted flue.
The STABILE PAB Fume Exhaust System is compatible with all STABILE products that can receive combustion fumes with maximum temperatures of 120°C such as for example from “Type C” condensing boilers.
DIMENSIONS
Diameter: 80mm - Angle: 45°.
