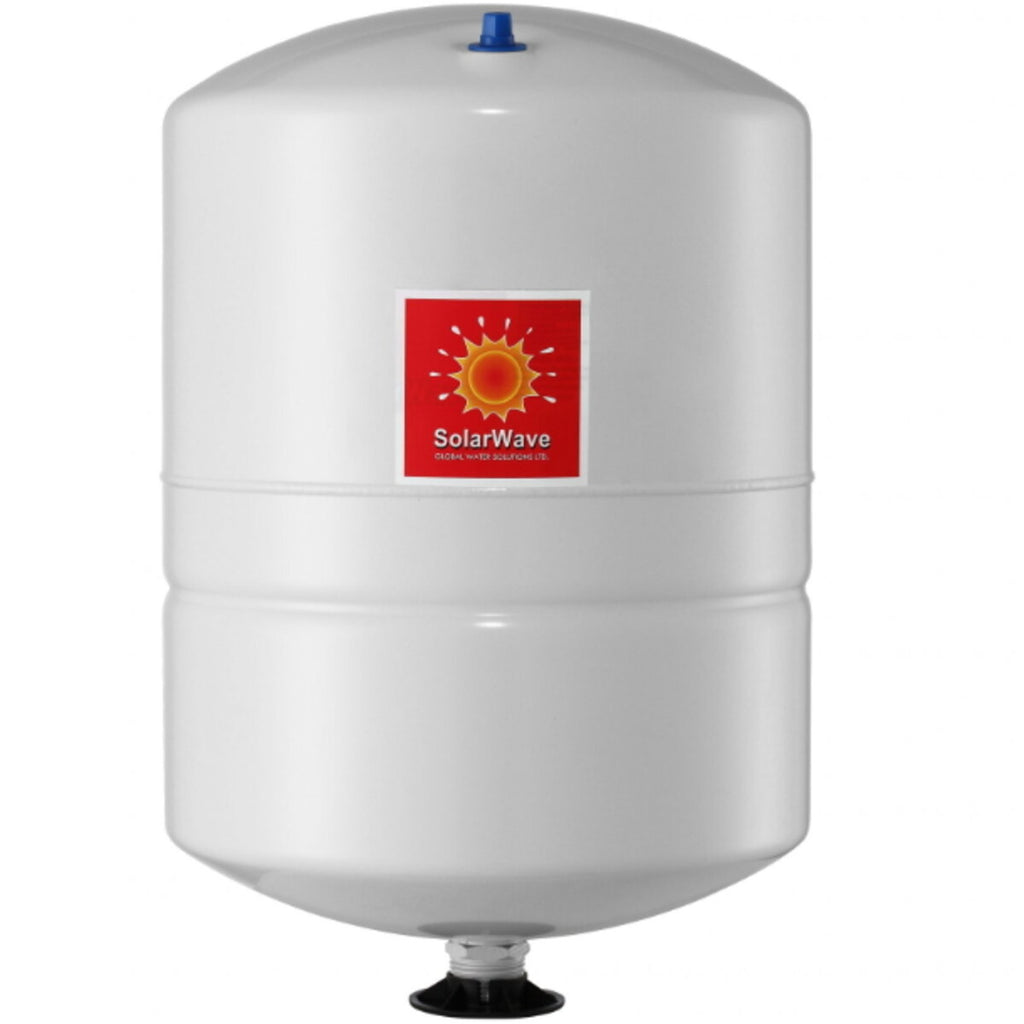

18 LITER EXPANSION TANK ATT. 3/4” SOLAR-WAVE
The SolarWave™ SWB-18LX tank is part of the extensive Global Water Solution product range that offers a complete line of expansion vessels ideal for various applications, including closed loop solar systems, solar thermal expansion hot water. SolarWave™ expansion vessels are designed to control the expansion and contraction of heat transfer fluids in solar heating systems to keep the entire system efficient and operational.
On the outside, the two-component almond-coloured polyurethane paint applied to an epoxy primer guarantees high resistance to atmospheric agents and durability over the years.
SolarWave™ tanks undergo individual quality testing during the manufacturing phase to ensure the structural integrity of each tank.
SolarWave™ tanks represent, to date, the best expansion tanks for solar applications available on the market; suitable for a wide range of applications, they do not require any maintenance.
TECHNICAL FEATURES
Special butyl diaphragm for high temperatures
High expansion factor
Patented stainless steel connection
Two-component polyurethane paint on epoxy base
Air leak-proof shut-off valve
Precharge in the vessel: 1.9 bar / 28 psi
Maximum operating pressure: 10 bar / 150 psi
Maximum system temperature: 130°C / 266°F
DIMENSIONS
Height: 364 mm - Width 279 mm
Weight 3.8 kg.
WARRANTY
The warranty is the official SOLARWAVE one and lasts 2 years.
